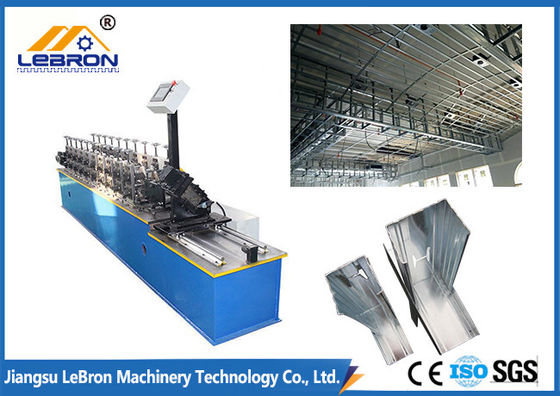

Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine

Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine
Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine

Large Image :  Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO9001: 2008
Model Number: LBM-STM-015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export sea worthy packing with each machine fixed and protected in the container
Delivery Time: 35 work days
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month

Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine

Description
Material: Heat-treated Galvanized Steel Strip Material Thickness: 0.6-1.6mm (235-345Mpa)
Shaft: High Quality 45# Steel With Heat Treatment. Forming Speed: About 20m/min
Rollers: Dia 55mm Controlling System: Mitsubishi PLC & Converter
High Light:

metal stud and track roll forming machine

,

metal stud making machine

Blue Color Drywall Framing Metal Stud And Track Roll Forming Machine Lightweight





1. Description of stud and track roll forming machine



Now, people tend to use steel. Compare with the traditional clays, stones or bricks, steel is lightweight, recyclable, costs less money and time. In a lightweight or light gauge steel system, most of building materials are made of steel, and most of these steel building materials are manufactured by roll forming machines, one of which is drywall stud and track roll forming machine. This machine was designed for the continuous and automatic production of metal c studs and u tracks which are applied for both exterior and partition walls in both individual and industrial buildings.



In the modern building system, metal c stud and u tracks are great inventions in steel building projects, and that makes drywall stud and track roll forming machine, or even all the lightweight or light gauge steel frame roll forming machines highly popular in the international.



The Stud and Track Roll Forming Machine is used for producing various different kinds of metal studs and tracks. And it can produce the metal studs and tracks continuously. Comparing with the bending machines, the Stud And Track Roll Forming Machine is more effective, save manual costs.



The studs and tracks shape mainly include C shape, U shape, W shape, C shape with holes, L shape, etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable using and so on.





2. Major technical parameters of stud and track roll forming machine



Suitable Material Cold-rolled steel strip and heat-treated galvanized steel strip
Thickness of raw material 0.6-1.6mm (235-345Mpa)
Material of roller 45# steel being quenched treatment
Material of cutter blade& punching die Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft High quality 45# steel with heat treatment.
Forming speed About 20m/min
Power Requiremen Main motor power: 5.5 Kw(Depend on final design)
  Hydraulic station power: 2.2Kw (Depend on final design)
Diameter of shaft for rollers 55mm
Controlling system Mitsubishi PLC & converter
Quantity of rollers About 15 stations for main rollers(Depend on final design)
Weight of machine About 6500KGS(Depend on final design)
Size of machine installation About 6m*1.2m*1.4m(Depend on final design)





3. Main components of stud and track roll forming machine



No. Item Quantity
1 Uncoiler 1 Set
2 Guide Device 1 Set
3 Roll Forming Machine 1 Set
4 Hydraulic Station 1 Set
5 Ran-out Table 2 Sets
6 PLC System 1 Set





4. FAQ



Q1: When your factory established?

A1: We established since 2007, the team with engineers who have 20 years experience in metal forming machine industry. We produce machine all-in-house, from raw material to ready machine, all done in our factory so that we can control our machine quality and delivery time.



Q2: How long does it take to deliver the machine after the order & deposit?
A2: Usually it will take 30-40 working days, to manufacture the machine and make it ready to deliver. At first 10 days, the technical drawing will be made. The second 15 days, start manufacturing the parts and ready to assemble. In the last 10 days, the machine will be assembled and inspected to make sure it is ready to deliver.

Q3: What is your warranty term?
A3: Machine warranty time is 12 months. We supply lifetime service for our produced machines for all customers.

Q4: Can you offer overseas service?
A4: Yes, we have experienced technicians who can be sent to different countries to install our machines and supply others service.







5. Installation service



a. After the machine arrives at the destination, the seller will send the technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs to provide some technicians to assist in the installation work.



Installation period is around 5 days. The buyer should have been prepared for the steel sheet, foundation position the machine before seller’s technician's departure.



The buyer should arrange the accommodation, food, and traffic in the destination



Training period: 2 days. (we can supply training on the operation spot if buyer needs)



Within 3 months after the arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. Inspection standard is based on the technical standard signed by both parties and our company standard.





Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine 0





Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine 1





Lightweight Stud And Track Roll Forming Machine , Blue Color Metal Stud Machine 2
