Product Details:
|
Main Power: | 5.5KW | Hydraulic Power: | 4.0KW |
---|---|---|---|
Suitable Material: | Galvanized Steel, Cold-rolled Steel Strip | Roller Station: | 12 Stations |
Speed: | Approx. 25m/min | Voltage: | 380V/50Hz/3Ph (can Customs) |
High Light: | quenched Stud Track Forming Machine,1.5mm Stud Track Forming Machine,Stud Track Forming Machine Dia 70mm |
Fully Automatic High Speed High Efficiency Stud And Track Roll Forming Machine
1. Description of stud and track roll forming machine
Now, people tend to use steel. Compare with traditional clays, stones, or bricks, steel is lightweight, recyclable, and costs less money and time. In a lightweight or light gauge steel system, most building materials are made of steel, and most of these steel building materials are manufactured by roll forming machines, one of which is drywall stud and track roll forming machine. This machine was designed for the continuous and automatic production of metal c studs and u tracks which are applied for both exterior and partition walls in both individual and industrial buildings.
The Stud and Track Roll Forming Machine is used for producing various different kinds of metal studs and tracks. And it can produce metal studs and tracks continuously. Compared with the bending machines, the Stud And Track Roll Forming Machine is more effective and saves manual costs.
The studs and track shapes mainly include C shape, U shape, W shape, C shape with holes, L shape, etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable use, and so on.
2. Major technical parameters of the stud and track roll forming machine
No. | Item | Description |
1 | Material Thickness | 0.5~1.5mm |
2 | Material Width | 100~200mm |
3 | Roller Material | 45# steel, quenched, coated with hard chrome |
4 | Shaft Material | 45# Steel, quenched, coated with hard chrome |
5 | Shaft Diameter | Dia 70mm |

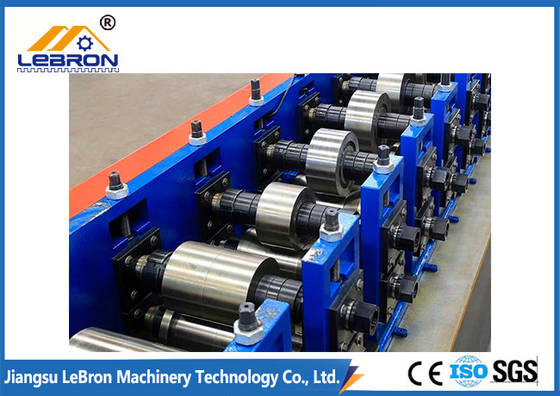

6 | Roller Station | 13 Stations |
7 | Forming Speed | Approx 5m/min |

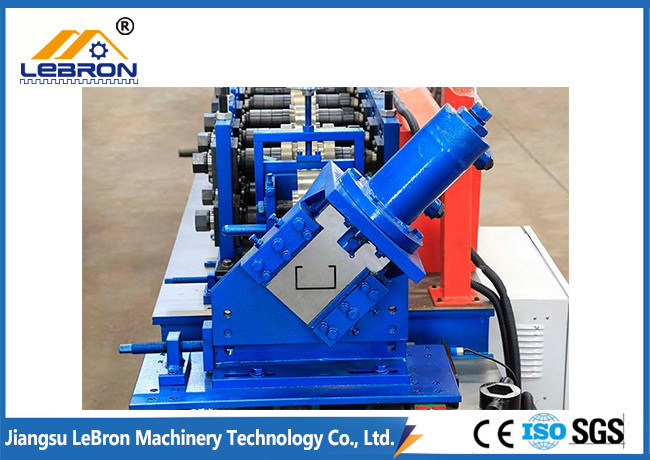

8 | Hydraulic Cutting | Cr12 steel, quenched, coated with hard chrome |
9 | Main Power | 5.5 Kw |
10 | Hydraulic Station Power | 4.0 Kw |
11 | Voltage | 380V/50Hz/3Ph |
12 | Machine Weight | Approx 5 Tons |
3. Main components of the stud and track roll forming machine
No. | Item | Quantity (Set) |
1 | Manual Uncoiler | 1 |
2 | Guiding Platform | 1 |
3 | Coil Strip Leveler | 1 |

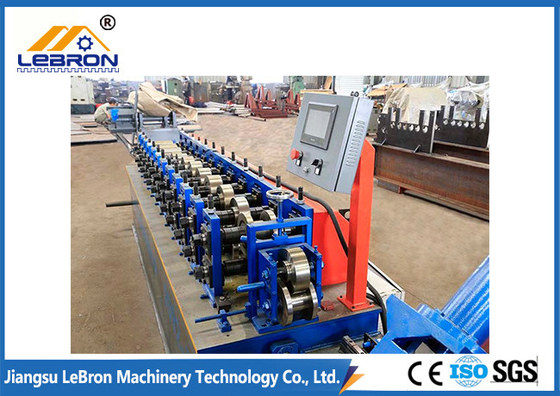

4 | Main Machine of Roll Forming | 1 |
5 | Electric-Motor | 1 |
6 | Cutting Device | 1 |

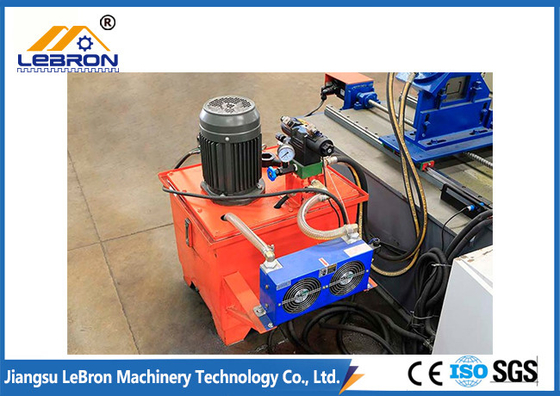

7 | Hydraulic Station | 1 |
8 | PLC Control | 1 |
9 | Supporter Table | 1 |
4. Our Advantages
Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole life technical support
5. Our Service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, a manual and video are provided to show how to install and operate.
After-sale Service:
We provide 24-hour online service for our customers.
a.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
the expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD100 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
