Product Details:
|
| Main Power: | 5.5KW | Hydraulic Power: | 4.0KW |
|---|---|---|---|
| Suitable Material: | Galvanized Steel, Cold-rolled Steel Strip | Width: | Below 500mm |
| Roller: | 45# Steel, Quenched Heat Treatment | Shaft: | 45# Steel, Quenched Heat Treatment |
| High Light: | Advanced Stud Track Roll Forming Machine,500mm Stud Track Roll Forming Machine,350 MPa Stud Track Forming Machine |
||

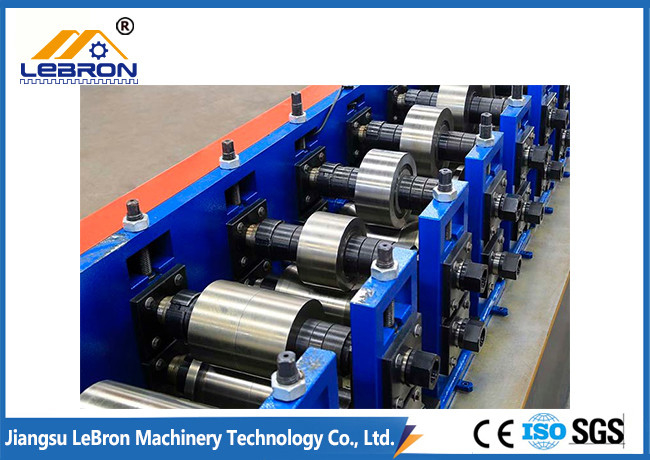

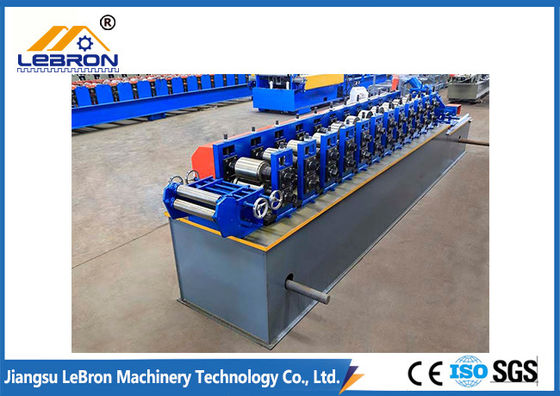

Advanced Fully Automatic High Speed Stud And Track Roll Forming Machine
1. Description of stud and track roll forming machine
Now, in the modern building project, metal studs and tracks are more and more widely used. The drywall stud and track roll forming machine, or even all the lightweight or light gauge steel frame roll forming machines are highly popular international.
A stud and track roll forming machine has been designed for the automatic manufacturing of the metal c stud or u track continuously for light gauge or lightweight steel building systems.
This Stud And Track Roll Forming Machine are driven by a chain in the hydraulic system. Compared with another system, a chain drive system can save power. Customers do not need to pay the extra power fee during production.

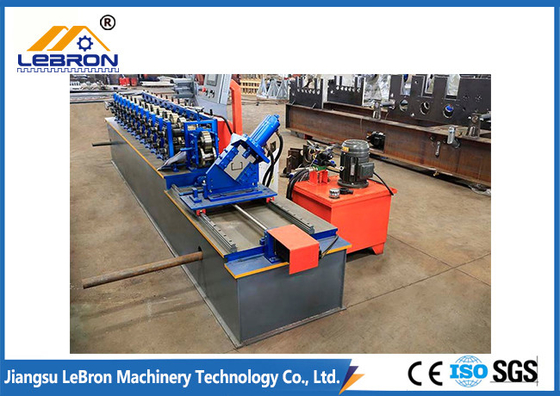

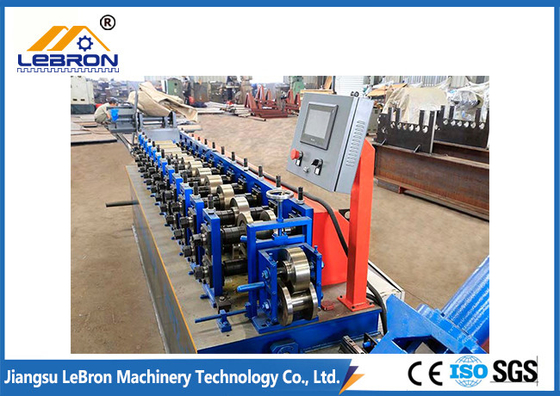

The complete Stud and Track Roll Forming Machine including the Decoiler, Main Roll Forming Machine, The PLC control system, and Ran-out tables. The roll forming machine is equipped with a computer control system. You just need to program in the computer the piece and length you need, then the roll forming machine produces it automatically. The machine is easy to operate and operates stably.
2. Major technical parameters of the stud and track roll forming machine
| No. | Item | Description | Remark |
| 1 | Yield Strength of Material | 550 MPa/ 350 MPa | |
| 2 | Material Thickness | 0.6-1.2 mm | |
| 3 | Diameter of Main Shaft | 60 mm | Can be custom |
| 4 | Principal Axis Material | Steel 45, Heat Treatment | |
| 5 | Roller Material | Cr12, Heat Treatment | |
| 6 | Roll Station | 10 Rows | Can be custom |
| 7 | Main Motor Power | 5.5 Kw | Can be custom |
| 8 | Driving Mode | By Gear Box Or Chain | |
| 9 | Sprocket | P-25.4 | |
| 10 | Hydraulic Station Power | 4Kw With Cooling System | Can be custom |
| 11 | Hydraulic Oil Pump | CB-E310 | |
| 12 | Material of Blade | Cr12, Heat Treatment | Can be custom |
| 13 | Cutting Way | Pause to Cutting, Non-stop | |
| 14 | Electrical System | PLC and HMI touch Screen | |
| 15 | Voltage | 380V/50Hz/3Ph | Can be custom |
3. Main components of the stud and track roll forming machine
| No. | Item | Quantity |
| 1 | Uncoiler | 1 Set |
| 2 | Guide Device | 1 Set |
| 3 | Roll Forming Machine | 1 Set |
| 4 | Hydraulic Station | 1 Set |
| 5 | Ran-out Table | 2 Sets |
| 6 | PLC System | 1 Set |
4. FAQ:
Q1. What is your advantage?
A1: We have over 12 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, and we will pick you up.
2). Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
