Product Details:
|
Thickness: | 1.2mm ~ 2.5mm | Forming Station: | 16 Stations |
---|---|---|---|
Shaft: | No.45 Steel, Heat Treatment | Main Power: | 15KW |
Hydraulic Power: | 7.5KW | Voltage: | 380V/50Hz/3Phase (can Custom) |
High Light: | Hdg C Z Purlin Roll Forming Machine,bottom w147mm C Z Purlin Roll Forming Machine,bottom w147mm c purlin machine |
47-147mm bottom width C Purlin Roll Forming Machine CZ Purlin Roll Forming Machine
1. Description of c purlin roll forming machine

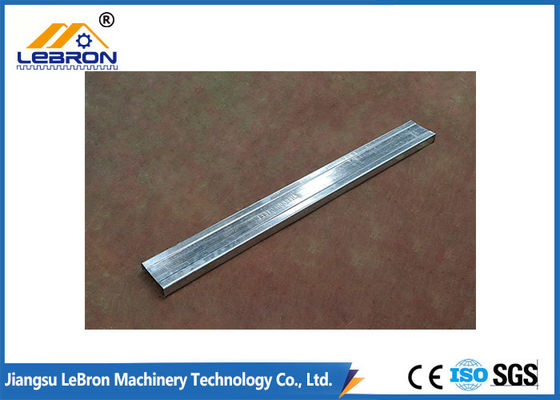

C-shaped steel is processed by hot-coiled plate and cold-bent, with thin wall, lightweight, excellent cross-section performance, and high strength. Compared with traditional channel steel, the same strength can save 30% of materials. C-shaped steel purlins are divided into five specifications of 80, 100, 120, 140, 160 according to different heights, and the length can be determined according to the engineering design;
C-shaped steel is widely used in the purlins and wall beams of steel structure buildings, and can also be combined into lightweight roof trusses, brackets, and other building components. In addition, it can also be used for columns, beams, and arms in mechanical light industry manufacturing. For example roof, load-bearing loads, and wall supports such as factory buildings, warehouses, stadiums, and market flower sheds are some of the indispensable steel materials in construction.
C47-147 C Purlin Roll Forming Machine is for producing the bottom width from 47~147mm C purlins.
2. Main Technical Parameters
No. | Item | Description |
1 | Suitable Material | Hot-dipped Galvanized Steel Coils |
2 | Thickness of Material | 1.2mm-2.5mm |
3 | Roller Stations | 16 stations |
4 | Diameter of Shaft | 80mm |
5 | Material of Shaft | 45# steel |
6 | Material of roller | GCr15 steel with quenching treatment and coated with hard chrome 0.05mm thickness |
7 | Forming speed | Approx. 18m/min |
8 | Main Power | 15KW |
9 | Overall Dimension | 10000mmx1500mmx1300mm |
10 | Weight of the machine | Approx. 10 Tons |
11 | Cutting | Hydraulic Post Cutting |
12 | Material of Cutting Blades | Cr12 steel with heat treatment |
13 | Hydraulic Power | 7.5KW |
14 | Control system | Panasonic PLC, Inverter, CHNT transformer, and Omron encoder |
