Product Details:
|
| Main Power: | 5.5KW | Hydraulic Power: | 4.0KW |
|---|---|---|---|
| Suitable Material: | Galvanized Steel, Cold-rolled Steel Strip | Roller Station: | 12 Stations |
| Speed: | Approx. 25m/min | Voltage: | 380V/50Hz/3Ph (can Customs) |
| High Light: | Automatic Steel Stud Track Forming Machine,12stations Stud Track Forming Machine,5.5KW Stud Track Forming Machine |
||
Advanced High Efficiency Steel Stud And Track Roll Forming Machine Fully Automatic
1. Description of stud and track roll forming machine
A Steel stud and track roll forming machine has been designed for the automatic manufacturing of metal c stud or u track continuously for light gauge or lightweight steel building systems.
Steel c studs and u tracks are great inventions in steel building projects, and that makes drywall stud and track roll forming machines, or even all the lightweight or light gauge steel frame roll forming machines highly popular internationally.
The studs and track shapes mainly include C shape, U shape, W shape, C shape with holes, L shape, etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable use, and so on.

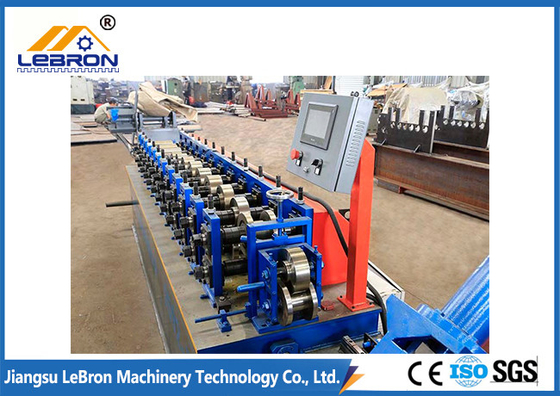

A Steel Stud and Track Roll Forming Machine includes the Decoiler, Main Roll Forming Machine, PLC control system, and Ran-out tables. Our roll forming machine is equipped with a computer control system. You just need to program in the computer the piece and length you need, then the roll forming machine produces it automatically. The machine is easy to operate and operates stably.
2. Major technical parameters of the stud and track roll forming machine
| No. | Item | Description |
| 1 | Material Thickness | 0.5~1.5mm |
| 2 | Material Width | 100~200mm |
| 3 | Roller Material | 45# steel, quenched, coated with hard chrome |
| 4 | Shaft Material | 45# Steel, quenched, coated with hard chrome |
| 5 | Shaft Diameter | Dia 70mm |
| 6 | Roller Station | 13 Stations |
| 7 | Forming Speed | Approx 5m/min |
| 8 | Hydraulic Cutting | Cr12 steel, quenched, coated with hard chrome |
| 9 | Main Power | 5.5 Kw |
| 10 | Hydraulic Station Power | 4.0 Kw |
| 11 | Voltage | 380V/50Hz/3Ph |
| 12 | Machine Weight | Approx 5 Tons |
3. Main components of the stud and track roll forming machine
| No. | Item | Quantity |

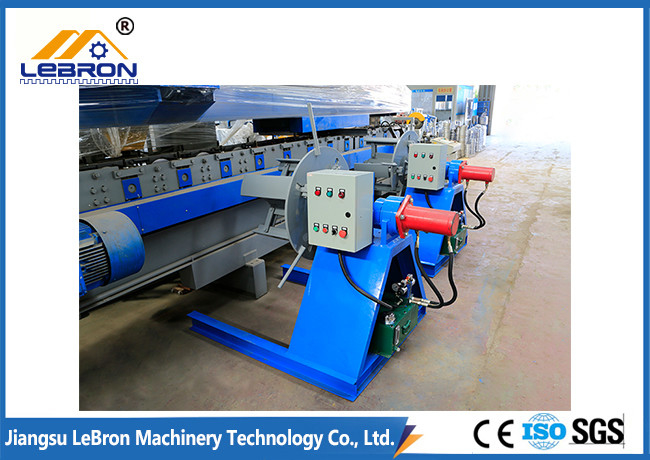

| 1 | Manual Un-coiler | 1 Set |
| 2 | Leveling Device | 1 Set |
| 3 | Punching Device (Optional) | 1 Set |

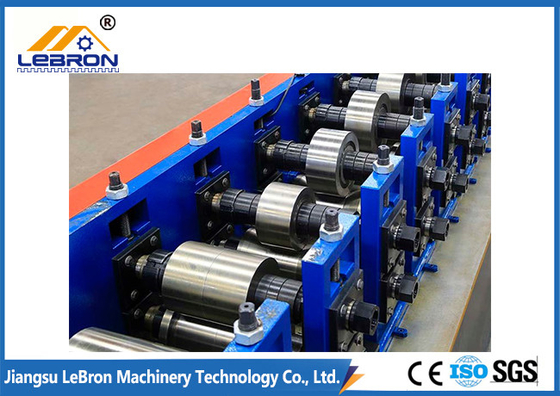

| 4 | Main Forming System | 1 Set |
| 5 | Hydraulic Cutting Device | 1 Set |

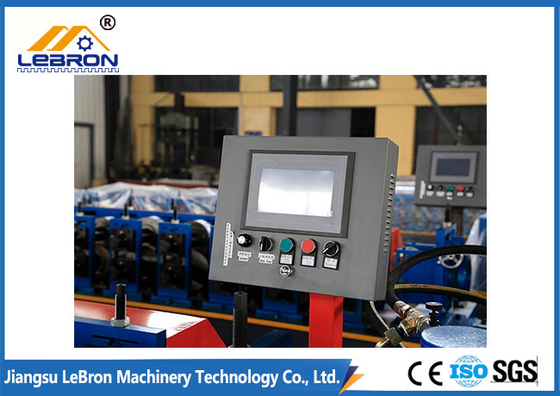

| 6 | PLC&HMI Control System | 1 Set |
| 7 | Run-Out Table | 2 Sets |
4. Our Advantages
Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole life technical support
5. After-Sale FAQ:
1). Q: How to acquire service support?
A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services include before-sale technical counseling, field installation, operation technical training, application solution training, troubleshooting support, etc.
2). Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?
A: Lebron-Machinery will provide 7 days of free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.
3). Q: What kind of warranty do Lebron-Machinery’s roll-forming machines provide?
A: Except for the consumables, the whole machine has a one-year limited warranty.
4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?
A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.
