Payment & Shipping Terms:
|Machine Size:||8.5m*1.6m*1.2m||Weight:||Approx 10 Tons|
|Main Power:||5.5Kw||Hydraulic Power:||4 Kw|
|Roller:||45# Steel. Quenched. Coated Hard Chrome||Voltage:||380V/50Hz/3Ph (can Custom)|
metal roof tile roll forming machine,
Corrugated wall panel roll forming machine,
highway guardrail roll forming machine

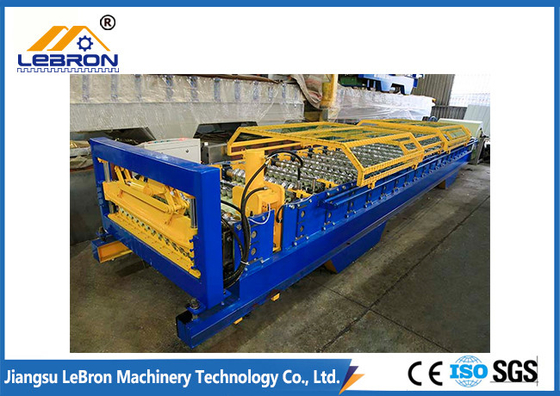

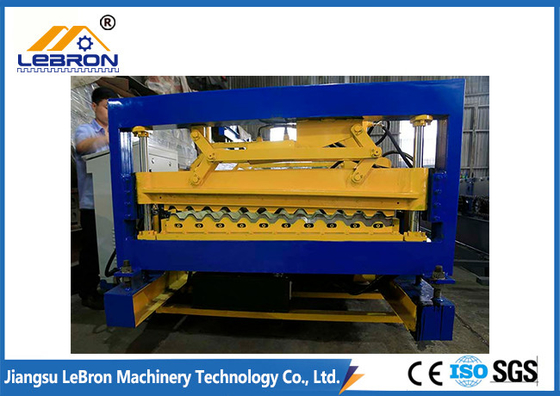

New Design High Efficiency Fully Automatic Corrugated Sheet Roll Forming Machine
1. Description of Corrugated Sheet Roll Forming Machine
YX18-70-840 Corrugated Roof Sheet Roll Forming Machine is a common metal roll forming equipment that produces YX18-70-840 corrugated Metal Roofing and Siding Panels. In our daily life, we can see many fans of corrugated metal sheets.
Compared to traditional clay tiles, stone or brick cladding, corrugated sheets give a traditional look, yet weigh lighter and have a longer life circle. In fact, corrugated metal roofing is the only cladding that should be used in conservation areas.
YX18-70-840 Corrugated Roof Sheet Roll Forming Machine makes metal roofing and siding panels from materials of 0.3-0.8mm thickness and 1000mm widths. 840mm effective width, 70mm wave distance, and 18mm wave height.
2. Major Technical Parameters of Corrugated sheet roll forming machine
Main performance parameters
|Machine size (L×W×H)||9*1.5*2m|
|Hydraulic decoiler||Capacity: Max. 5Ton, hydraulic control steel coil inner bore expanding, shrinkage, and stop.|

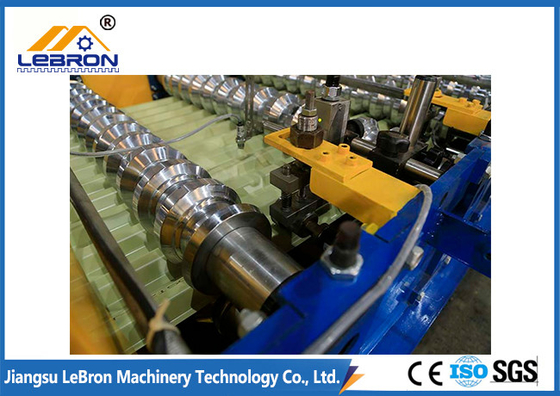

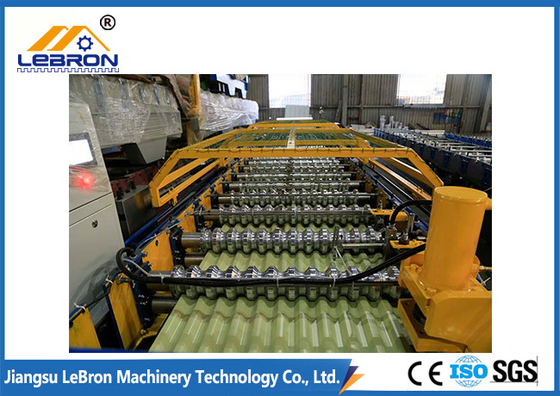

|Forming machine||Main Roll Forming Machine||About 22 steps, motor driving, and chain transmission. Wall plate structure.|
|Cutting system||Hydraulic Cutting Device||post-cutting|
|Hydraulic system||Hydraulic Station||Providing the power of cutting.|
PLC Control System
|PLC control system, encoder positioning, and cut-to-length automatically, touch screen operating.|
|Racking system||Exit rack||no power.|
3. Major Components
|Coil sheet guiding device||1 set|
|Main roll forming system||1 set|
|Cutting device||1 set|
|Hydraulic station||1 set|
|PLC control system||1 set|
|Support table||2 sets|
|While in some other cases, we can provide a hydraulic decoiler and auto stacker as per request.|
Q1. What is your advantage?
A1: We have over 11 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, we will pick you up.
2). Fly to Shanghai Airport: By high-speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
6. Our service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be maintained, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
