Product Details:
|
| Suitable Material: | Galvanized Steel Coil | Thickness: | 1.5~3.0mm |
|---|---|---|---|
| Roller Stations: | 23 Stations | Forming Speed: | Approx. 18m/min |
| Main Power: | 15KW | Hydraulic Power: | 7.5KW |
| High Light: | 3.0mm thickness purlin roll former,Steel Coil purlin roll former,Steel Coil c purlin machine |
||

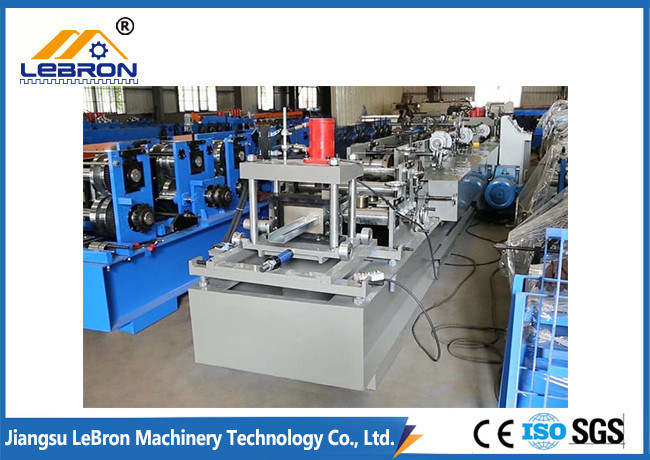

PLC System Control Fully Automatic C Z Purlin Roll Forming Machine Siemens PLC
1. Description of CZ purlin roll forming machine
Investment in two roll forming machines (one Cee shaped section channel roll forming machine and one Zed shaped section channel roll forming machine) is not an ideal solution to contractors or distributors. As a result, our genius roll forming engineers have pictured out a new type roll forming machine image in their minds.
Finally, a c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.
The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine
2. Technical Parameters of CZ Purlin Roll Forming Machine
| No. | Item | Description |
| 1 | Suitable Material | GI, GL, PPGI, PPGL Coil, Q235 Coil |
| 2 | Suitable Thickness | 1.5~3.0mm |
| 3 | Roller Station | 16 stations |
| 4 | Forming Speed | 8~12m/min (including the punching and cutting) |
| 5 | Roller Material | GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
| 6 | Main Motor Power | 15 KW |
| 7 | Shaft Material | Cr40 steel, Tempering, and Quenching |
| 8 | Shaft Diameter | 70mm |
| 9 | Cutting | Hydraulic Cutting |
| 10 | Blade Material | C12MoV, Quenched |
| 11 | Hydraulic Station Power | 7.5 Kw |
| 12 | Drive Type | Single row Chain Drive |
| 13 | Machine Size | 10500mmx900mmx1500mm (L*W*H) |
| 14 | Machine Weight | Approx 8 tons |
| 15 | Machine Frame | 48mm Thick Plate |
| 16 | PLC Control System | Panasonic |
| 17 | Frequency converter | Yaskawa |
| 18 | Encoder | Omron |
| 19 | Servo motor | Yaskawa |
| 20 | Other Electrical Components | Schneider |
3. Main Components of CZ Purlin Roll Forming Machine
| No. | Name | Quantity |
| 1 | Uncoiler | 1set |
| 2 | Coil sheet guiding device | 1set |
| 3 | Main roll forming system | 1set |
| 4 | Punching device | 1set |
| 5 | Cutting device | 1set |
| 6 | Hydraulic station | 1set |
| 7 | PLC control system | 1set |
| 8 | Support table | 1set |
4. Our Advantages
Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole life technical support
5. Our service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video are provided to show how to install and operate.
After-sale Service:
We provide 24-hour online service for our customers.
a.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
the expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD100 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
