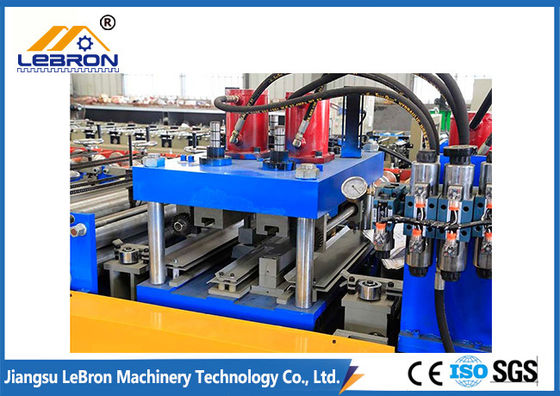

12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine

12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine
12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine 12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine 12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine 12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine

Large Image :  12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine

Product Details:
Place of Origin: Wuxi, Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO 9001: 2008
Model Number: CZ Purlin Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD20000~40000 per Set
Packaging Details: Standard Export Packing
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month

12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine

Description
Thickness: 1.5mm ~ 3.2mm Forming Station: 15 Stations
Punch Die: Cr12MoV Steel, Quenched Main Power: 30KW
Hydraulic Power: 7.5KW Voltage: 380V/50Hz/3Phase (can Custom)
High Light:

30KW profile roll forming machine

,

12m/min cz purlin machine

,

15 Roller Stations cz purlin machine

Automatic 20m/Min Speed CZ Purlin Profile Roll Forming Machine 18 Roller Stations





1. Description of c purlin roll forming machine



The manufacturer of the interchangeable cz Purlin roll forming machine produces Cee and Zed special-shaped channels, the shape and size of which can be quickly changed by PLC control.



A traditional c/z purlin roll forming machine can make many different sizes of profile channels (standard: 6 different sizes, from 80-300mm web size, 50-100mm flange size, 15-20mm The size of the support foot changes), but it needs to be manually changed, and it takes at least 2 hours to change the size each time. Therefore, the traditional c/z steel purlin roll forming machine does not work efficiently.



An interchangeable cz purlin roll forming machine is designed, which can produce C and Z steel strips of any size. The profile change including the cutting mold from C to Z takes up to 30 minutes (only the clutch is taken out, some rolling tools and the inserted clutch are rotated 180 degree), and the size change takes up to 5 minutes (just through the touch screen on the PLC control cabinet) ). This quick-change c/z steel purlin roll forming machine greatly improves efficiency.





2. Main Technical Parameters



No. Item Description
1 Suitable Raw Material Q235 Galvanized steel coil or Cold rolled steel
2 Thickness 1.5mm ~ 3.2mm
3 Forming Station 15 stations
4 Forming Speed 0~12m/min
5 Punch Die Cr12MoV steel, quenched
6 Diameter of Shaft Dia 70mm
7 Roller Material High quality GCr15 Bearing steel
8 Cutter Material C12 Steel, quenched, coated with 0.05mm chrome
9 Main Power 30 KW (and over)
10 Hydraulic Station 7.5 KW (and over)
11 Voltage 380V/50Hz/3Phase (can custom)
12 Control System PLC Control System





3. Application:



The c purlin which was produced by CZ Purlin Roll Forming Machine can be used for the major stress structure of the large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.





12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine 0



12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine 1



12m/Min Profile Roll Forming Machine , 15 Roller Stations 30KW Cz Purlin Machine 2
