Product Details:
|
| Raw Coil: | Galvanized Steel Coil | Coil Thickness: | 0.3~1.0mm |
|---|---|---|---|
| Roller Station: | 12 Staions | Roller Material: | 45# Steel, Quenched, Plated With Chrome |
| Shaft Material: | 45# Steel, Quenched, Plated With Chrome | Motor Power: | 5.5 KW |
| High Light: | keel making machine,keel manufacturing machine |
||

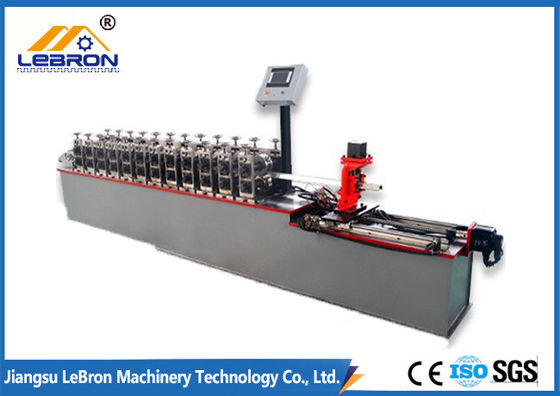

Steel Frames Ceiling drywall Light Steel Keel Roll Forming Machine Delta PLC Control
1. Description of light steel keel roll forming machine
The Light Steek Keel Roll Forming Machine can produce the ceiling battens. Which somehow have been applied as the way how stud and track works, but their shapes are different.
Features of Ceiling Battens:
The return edge is folded back on itself, providing a safe edge and a rigid profile.
0.42mm thick hi-tensile steel is very strong, lightweight and is easy to cut with tin snips.
The 20mm high profile provides strength and is designed to nest for easy handling and storage.
A cavity on the bottom prolongs the batten’s life by preventing condensation from forming.
A textured surface makes installation easy when locating and screwing plasterboard fixings.
Any customized lengths ceiling Battens are available for easy handling and storage.
Lebron-Machinery offers ceiling batten or roof batten roll forming machines for manufacturing steel battens with customized sizes. Besides, we are open to design and build any customized lightweight steel frame roll forming system.
2. Main technical parameters of the light steel keel roll forming machine
| Part details | Item Name | Specification |
| Manual uncoiler | Capacity | 5 tons |
| Type | Manual | |
| Raw coil | Coil material | Galvanized steel |
| Coil thickness | 0.3-1.0 mm | |
| Machine body | Roller station | 12 station |
| Roller material | 45# steel, quenched | |
| Shaft material | 45# steel, quenched | |
| Shaft diameter | 55 mm | |
| Machine weight | About 3.5 tons | |
| Machine size | 4000*1000*1200 mm | |
| Speed | 20 ~ 30 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12 steel | |
| Power | Drive type | Gear chain |
| Chain size | 1-inch chain | |
| Control system | PLC brand | Panasonic |
| Motor power | 5.5 KW | |
| Hydraulic pump power | 3 KW | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As your need | |
| Machine language | Chinese and English |
3. Main technical parameters of the light steel keel roll forming machine
| Name | Quantity | Units | |
| Decoiler | 1 | Set | |
| Main Machine | Feeding device | 1 | Set |
| Roll forming system | 1 | Set | |
| Cut Equipment | 1 | Set | |
| Hydraulic system | 1 | Set | |
| Electric control system | 1 | Set | |
| Supporter/Automatic Stacker | 1 | Set | |
4. Our service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
C. Training
During the installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
