|Material Width:||914-1250mm||Material Thickness:||0.3-0.8mm|
|Forming Speed:||0-12m/min||Roller Material:||High Quality 45#steel|
|Shafts Material:||45# High-quality Steel||Shaft Dia:||70mm|
|Forming Stations:||16-22 Forming Stations||Blade Material:||Cr12 With Quenched Treatment|
glazed roof tile roll forming machine,
glazed tile making machine

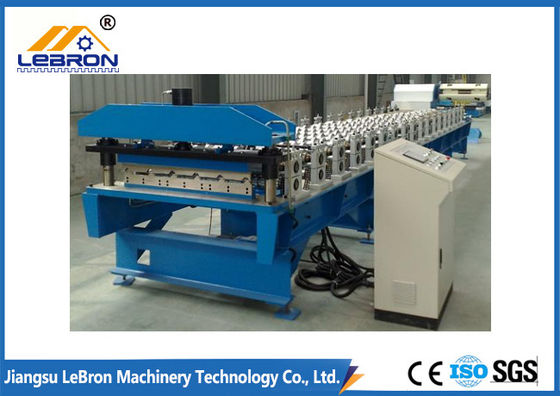

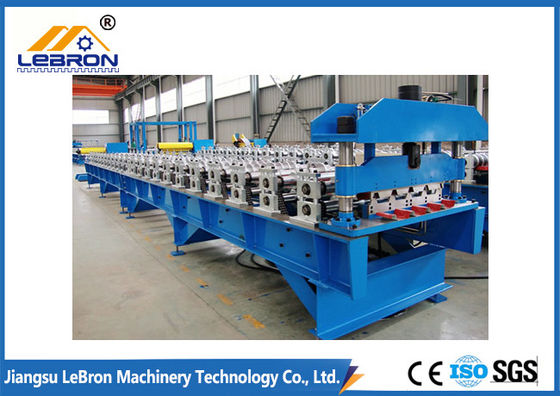

Roof Sheet Forming Machine Automatic Trapezoid Sheet Roll Forming Machine Light Steel Structure
1. Description of Roof Sheet Forming Machine
This Roof Sheet Roll Forming Machine produces trapezoidal sheets from colour prepainted steel coils, Galvanized steel coils, aluzinc sheets, and sometimes aluminium steel coils (aluminum roof panels are prefered in Nigeria).
Generally, material thickness varies from 0.3 to 0.8mm, and width varies from 914mm to 1250mm. However, in some applications, material thickness can reach up to 1.5mm, like roof deck. Furthermore, in some countries or areas, people use G550 material to make full hard metal roofing sheets.
Sometimes when a client needs to produce trapezoidal sheets with different effective widths with anything else remained the same. In this case, the investment shall be made on only one machine, because a trapezoidal roof panel roll forming machine is always adjustable for different feeding widths.
This means you can make trapezoidal roof panels with different effective widths from different-width materials. However, a client must need two trapezoidal sheet roll forming machines for manufacturing two panels at the same time.
Just like the regular roof sheet forming machine, a trapezoidal sheet roll forming machine typically consists the components as following:
Roll Forming Unit
2. Technical Parameter of Roof Sheet Forming Machine
|2||Material thickness||0.3-0.8mm (sometimes upto 1.5mm maximum, depends on techncial requirements)|
|3||Forming speed||0-12m/min (high speed is optional as per request)|
|4||Forming stations||16-22 forming stations (subject to the technical drawing of profiles)|
|5||Roll forming stands structure||conjoint type|
|6||Material of Roller||high quality 45#steel with the surface mirror polishing and coated with hard chrome 0.05mm.|
|7||Material of Shafts||45# high-quality steel|
|8||Diameter of Shafts||70mm (80-90mm if the thickness over 1mm)|
|9||Thickness of Siding Plate||18mm|
|11||Motor Power||5.5 KW|
|12||Material of cutting blade||Cr12 with quenched treatment 60-62 degrees|
|14||Cutting Lengths and Quantities||Customer can set required lengths and quantities clients through the touch screen on PLC control box.|
|16||Control system||Panasonic PLC, Inverter, CHNT transformer and HMI|
3. After Sale FAQ:
1). Q:How to acquire for service support?
A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including: before-sale technical counseling, field installation, operate technical training, application solution training and troubleshooting support, etc. You can gain service support from our distributors in your region.
2). Q: After purchase Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?
A: Lebron-Machinery will provide 7 days’ free field training. The training place can be in Lebron-Machinery company or in places designated by customer where installation take place, this can all be predetermined by clients in the contract.
3). Q:What kind of warranty do Lebron-Machinery’s gutter machine provide?
A:Except for the consumables,the whole machine has one year limited warranty.
4). Q: After buying Lebron-Machinery’s equipment, is there technician in charge of supporting on site installation?
A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support for the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, LBM will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives. Except the contract made other agreement for the installation.
