Product Details:
|
| Material: | No.45 Steel, Coated With Chromed Treatment | Roller Stations: | 20 Rolls |
|---|---|---|---|
| Weight:: | About 15000 Kgs | Warranty:: | 18 Months |
| Main Motor Power:: | 5.5kw | Cutter Material: | CR12 Mould Steel, With Quenched Treatment |
| Highlight: | corrugated roof roll forming machine,roofing corrugated sheet roll forming machine |
||

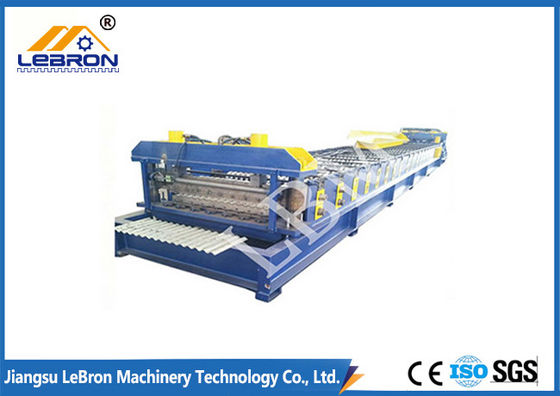

Main Power: 5.5KW Corrugated Sheet Roll Forming Machine PLC Control Hydraulic Cut
1. Machine Parameters
| No | Item | Parameter |
| 01 | Material feeding width | 925~1220mm |
| 02 | Material thickness | 0.3~1.0mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 8-15m/min |
| 06 | Forming Steps | 16stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 70mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 11kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 5.5kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 6.2t |
| 21 | Overall dimensions | 8600x1500x1300mm |
2. PACKAGE:
LCL Loading Packaging: Steel pallet and plywood case.
——FCL Loading Packaging: Steel pallet with plastic film.
——Shipping: by sea
3. Our Service:
- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
- Reply within 24 hours
- Provide relevant product information
- Answer questions if request
- Give technical suggestion
² Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
4. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
5. Layout of highway guardrail roll forming machine:
6. Our service
1). Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
2). After-Sale Service
a. 12 months warranty is provided.
b. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
7. Picture
