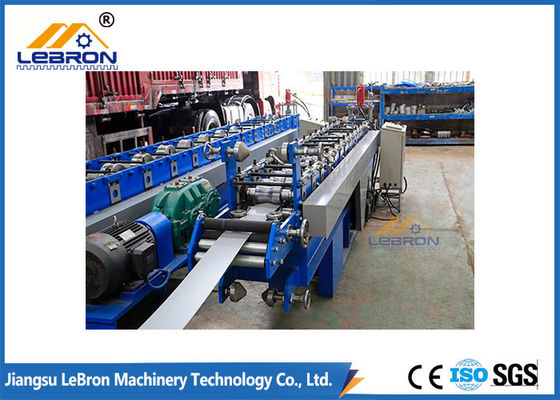

4KW 12m/Min Automatic Shutter Door Roll Forming Machine Chain Drive

Automatic Shutter Door Roll Forming Machine Shutter Door Slat Roll Forming Machine

1. Description of shutter door roll forming machine:

Rolling shutters, rolling shutters are a type of door or window shutter, consisting of many horizontal slats (or panels) hinged together. Raise the door to open it, then lower it to close it. You can open the door manually or electrically. Rolling doors have many applications, including doors for trucks, kitchens, warehouses, and factories. In some parts of the world, roller shutters are used as a method of heat insulation (PU roller shutters), which can protect doors and windows from hail damage and can withstand high winds. Lebron-Machinery has a full range of rolling and coiling machines that meet different requirements.

2. Technical details of shutter door roll forming machine:

Raw material: galvanized steel strip
Material thickness: 0.7-1.2mm (can custom according to customer's requirements)
Machine working speed: 12~15m/min
Rolling stations: 14/19 stations
Roller material: 45# Steel. precision-machined, quenched
Drive Mode: Chain
Drive motor: 4KW/5.5kw
Body frame: cast iron vertical structure
Cutting type: hydraulic
Cutting power: 2.2/3.75kw
Cutting method: automatic tracking and cutting
Control system: PLC
Control station brand: Siemens

3. Main components of shutter door roll forming machine

1. Uncoiler, 3 tons capacity, manual or electric
2. Roll forming machine, 14/19 forming steps, 5.5KW Systems motor, siding mill, or chrome-plated stand mill
3. Cutting device, hydraulic or sawing.
4. Punching device (optional)
5. Control system: Siemens or Panasonic PLC, Yaskawa inverter, Omron encoder, Siemens or MCGS touch screen
6. Hydraulic station, 2.2kw/3.75kw
7. Collection table, simple or automatic stacker
