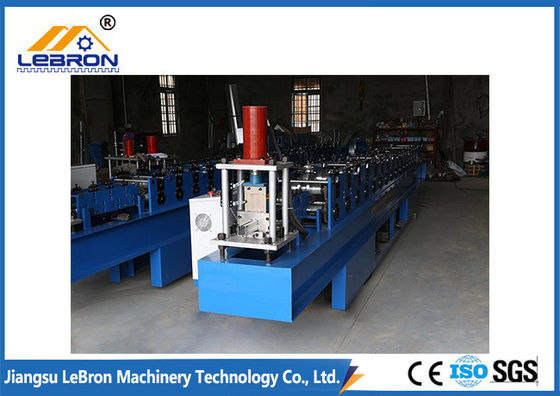

7.5KW 15m/Min 18 Rollers Door Frame Roll Forming Machine 22 Rows

7.5KW 15m/Min 18 Rollers Door Frame Roll Forming Machine 22 Rows
7.5KW 15m/Min 18 Rollers Door Frame Roll Forming Machine 22 Rows 7.5KW 15m/Min 18 Rollers Door Frame Roll Forming Machine 22 Rows

Large Image :  7.5KW 15m/Min 18 Rollers Door Frame Roll Forming Machine 22 Rows

Product Details:

Place of Origin: Wuxi City, Jiangsu Province, China
Brand Name: Lebron
Certification: ISO 9001: 2008
Model Number: Door Frame Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: USD10000~40000 per Set
Packaging Details: Export Packing with each machine tied and protected in the container
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Name: Door Frame Roll Forming Machine Working Speed: 12-15 M/min
Roller Quantity: 18 Rollers Driven System: Gear Box Drive
Main Power With Reducer: 7.5KW Hydraulic Station Power: 7.5KW
High Light:

15m/min Door Frame Roll Forming Machine

,

15m/min door frame making machine

,

7.5KW Door Frame Roll Forming Machine



Specifications:

1. roller shutter door machine
2. precise forming
3. reliable quality
4. professional service
5. CE&ISO certificates



1. Description of Door Frame Roll Forming Machine

A door frame roll forming machine generally consists of a decoiler (a hydraulic decoiler is optional ), a main roll forming machine, transmission system, a cutting tool, hydraulic system, a hydraulic oil pump, a PLC control cabinet and run-out tables

Lebron-Machinery is manufacturing the high quality door frame machines, and they are mostly exported to the foreign countries, such as India, Angola, Ethiopia, Ghana, Zambia, Brazil, Argentina, Thailand, Philippines, Pakistan, Russia, etc.





2. Technical Parameters of Door Frame Roll Forming Machine

Machine Specifications
Weight About 6000kgs
Size About 10.0m*1m*1.4m (L x W x H)
Color Main color: Blue
Warning color: Yellow
Suitable Raw Material
Material Galvanized steel strip
Thickness 0.8~1.2mm
Coil width 240mm
Yield strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20 ~ 22rows
Diameter of forming rollers shafts 75 mm
Roll Forming Speed 10-15m/min
Production Speed Approx. 8m/min
Forming rollers material 45# steel, coated with chrome, quenched
Cutter material Cr12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main motor power: 7.5 Kw
Hydraulic unit motor power: 4 kw
Electric voltage 380V 50Hz 3 Phase (as per local requirement)




3. After Sale Service

Install and Training:

If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, manual and video is provided to show how to install and operate.



After-sale Service:

a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller. When technique men go to the buyer's place to debug the machines, the buyer should pay the

expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.

b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
