Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine

Certification
China Jiangsu Lebron Machinery Technology Co., Ltd. certification
China Jiangsu Lebron Machinery Technology Co., Ltd. certification
Nice factory. Nice service!!!!

—— Nick

Lebron-Machinery is a very good company!

—— Kadasanwan

I'm Online Chat Now

Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine

Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine
Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine

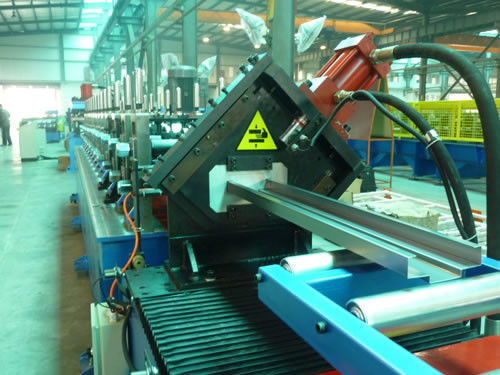

Large Image :  Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine

Product Details:

Place of Origin: Wuxi City, Jiangsu Province, China
Brand Name: Lebron
Certification: ISO 9001: 2008
Model Number: Door Frame Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: USD2000~4000 per Set
Packaging Details: Export Packing with each machine tied and protected in the container
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Name: Rolling Door Roll Forming Machine Weight: About 6000kgs
Size: About 10.0m*1m*1.4m (L X W X H) Material: Galvanized Steel Strip
Thickness: 0.8~1.2mm Coil Width: 240mm
High Light:

Steel Strip roller shutter forming machine

,

1.2mm small roll forming machine

Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine



Rolling Door Roll Forming Machine Description



This Door Frame Roll Forming machine can produce various kinds of Roll Formed Aluminum & GI Steel Door or Window frames.



The punching also can be designed according to your needs. After roll formed by this Door & Window Roll Forming Machine, the surface will be very smooth and beautiful without any scratch on surface.



Rolling Door Roll Forming Machine Technical Parameters



Machine Specifications
Weight About 6000kgs
Size About 10.0m*1m*1.4m (L x W x H)
Color Main color: Blue
Warning color: Yellow
Suitable Raw Material
Material Galvanized steel strip
Thickness 0.8~1.2mm
Coil width 240mm
Yield strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20 ~ 22rows
Diameter of forming rollers shafts 75 mm
Roll Forming Speed 10-15m/min
Production Speed Approx. 8m/min
Forming rollers material 45# steel, coated with chrome, quenched
Cutter material Cr12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main motor power: 7.5 Kw
Hydraulic unit motor power: 4 kw
Electric voltage 380V 50Hz 3 Phase (as per local requirement)



Door Frame Sketch



Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine 0



After-Sale Service


Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video are provided to show how to install and operate.

After-sale Service:


We provide a 24-hour online service for our customers.
a . The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When the technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.


Details



Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine 1

Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine 2

Galvanized Steel Strip 1.2mm Rolling Door Roll Forming Machine 3
