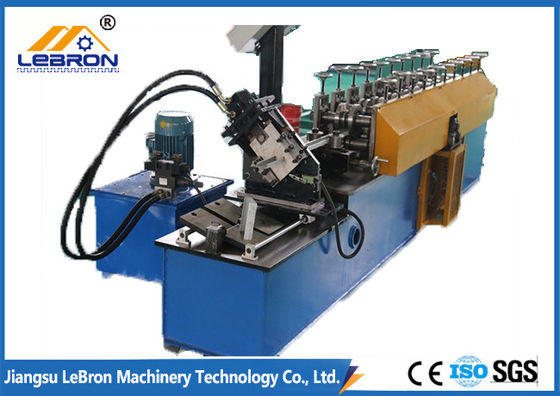

Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine

Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine
Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine

Large Image :  Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO9001: 2008
Model Number: LBM-LSK-007
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 35 Sets per Month

Automatic Light Steel Keel Roll Forming Machine , U C Channel Roll Forming Machine

Description
Raw Material: GI, GL Strip Width: 150-350 Mm
Working Speed: 25-45 Roller Stations: 11-13 Stations
Main Power: 7.5 KW Hydraulic Power: 3.5 KW
High Light:

ceiling channel roll forming machine

,

keel making machine

Automatic Drywall Galvanized Sheet Light Steel Keel Roll Forming Machine U C Channel





1. Description of light steel keel roll forming machine



The Light Steel Keel Roll Forming Machine is used for producing various different kinds of metal ceilings. And it can produce the ceilings continuously. Comparing with the bending machines, the Light Steel Keel Roll Forming Machine is more effective, save manual costs.



The ceiling shape mainly includes C shape, U shape, Hat shape, Angle shape etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable using and so on.



Due to the technology monopoly, there are rarely Chinese manufacturers can provide steel framing solutions for lightweight or light gauge steel buildings, but for a drywall stud and track roll forming machine production, Chinese manufacturers are no-doubt reliable.





2. Main technical parameters of the furring channel roll forming machine



Technical Parameters for Light Steel Keel Roll Forming Machine



Main roll forming

machine

Raw material width mm 150-350
Working Speed m/min 25-45
roller stations station 11-13





Motor power

Main motor power kw 7.5
Hydraulic Station Power kw 3.5
Hydraulic Station Pressure Mpa 12



Otehrs

Electrical Control System PLC brand famous brand
Material Thickness mm 0.3-1.0mm
Cutting accuracy mm ±2





3. Main components of furring channel roll forming machine



Name Quantity Units
Mannaul Uncoiler 1 Set
Feeding Device 1 Set
The Main Roll Forming System 1 Set
Hydraulic Device 1 Set
Hydraulic Station 1 Set
PLC System 1 Set
Receive Table 2 Sets





4. FAQ



Q: How to maintenance?
A: If using frequently, best coating lubricant on the chain and two ends of the shaft every month,

replace the hydraulic oil every 1-2 years.

Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address.we have rich experience in transport.

Q: Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production


Q: How many workers operate this machine to manufacture?
A: Only 1-2 worker.

Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil



Q: How is this machine's service life?
A: In the normal maintenance, the service life at least 8 years.
