Product Details:
|
| Material: | 45# Steel Quenched, Coated Chrome | Roller Stations: | 15 |
|---|---|---|---|
| Forming Rollers Material:: | No.45 Steel, Coated With Chromed Treatment | Roll Forming Speed:: | 8-12m/min |
| Electric Voltage:: | 380V 50HZ 3 Phase (or Custom) | Roller Shaft Diameter:: | 70mm |
| High Light: | glazed roof tile roll forming machine,glazed tile making machine |
||

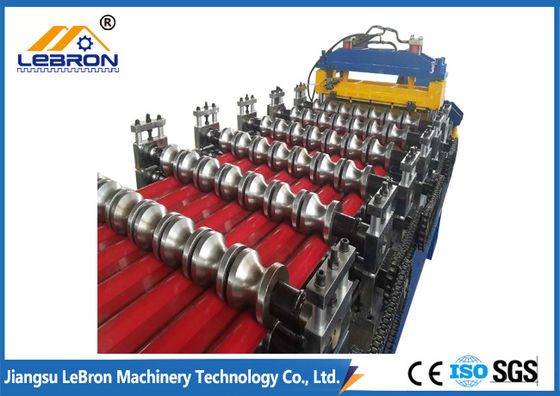

Servo Guiding Device Color Steel Tile Roll Forming Machine PLC Control 8-12m/min
1. Description of LBM-GTM-008 type color steel tile roll forming machine:
Color steel tile has the good characteristics, such as light weight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance free, etc. Now, it is widely popularized and used. This machine is suit for the production of various kinds of color steel tiles.
LBM factory is producing high quality color steel tile roll forming machines. Most of the machines were exported to Thailand, Singapore India, Vietnam, Iran, Russia, Ghana, Tanzania, etc.
2. Detailed parameters of LBM-GTM-008 type color steel tile roll forming machine
Machine Specifications
Weight Approx 6000 Kg
Size 8 m*1.5m*1.2m (Length x Width x Height)
Color Main color: Blue & Yellow (or custom)
Suitable Raw Material
Material PPGI and PPGL Coils, Hot rolled & Cold rolled coil
Thickness 0.3-0.8mm
Coil width 1000mm, 1220mm, 1450mm
Yield Strength 235Mpa-550Mpa
Main Technical Parameters
Quantity of forming rollers stations 20
Diameter of forming rollers shafts 70 mm
Roll Forming Speed 10-16m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5 Kw
Electric voltage 380V 50HZ 3 Phase (or custom)
3. Main components of YX25-210-840 type color steel tile roll forming machine
| Manual Decoiler | 1 Set |
| Feeding guiding device | 1 Set |
| Leveling System | 1 Set |
| Roll Forming System | 1 Set |
| Hydraulic Cutting System | 1 Set |
| PLC control box | 1 Set |
| Hydraulic Unit | 1 Set |
| Receiving Tables | 1 Set |
4. Panel sketch
5. Service
| 1. | · 5 engineers with more than 20 years experience |
| 2. | · 30 professional technician |
| 3. | · 22 sets advanced CNC production lines on site |
| 4. | · Installation engineers can reach your factory within 6 days |
| 5. | · 3 years maintenance and whole life technical support |
| 6. | · Free accessories can be offered to you during the warranty period |
6. Delivery
