Product Details:
|
| Working Speed: | 12m/min | Shaft Material: | No. 45 Steel. Quenched, Coated Chrome |
|---|---|---|---|
| Color: | Blue And Red | Roller Stations: | 22 |
| Warranty:: | 18 Months | Electric Voltage:: | 380V 50HZ 3 Phase (or Custom) |
| High Light: | cable tray punching machine,cable tray making machine |
||

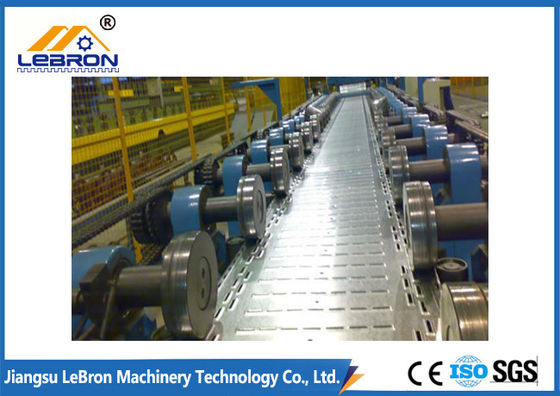

PLC Control Cable Tray Roll Forming Machine 2018 new design GI and GP material
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-1.0mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 6000mmx80mmx1400mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 3000-3500KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 9.5kw |
| 15 | Power of hydraulic system | 5.5kw |
| 16 | Power of main molding core | 4kw |
2. Advantage:
- As the same as the machine in picture, our metal stud machine can produce stud profile and truck profile,
- those profile are for partition wall, also call drywall. For this machine,
- the profile size is C&U 52*32mm, and there are also embossing at the two sides.
We have professional team to make different kinds of roll forming machines for our customers, from designing, processing, assembling, debugging,delivery.
Guarantee period: 12months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use thenmachine, and also train your workers or technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
4. Picture
