Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System

Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System
Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System

Large Image :  Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: LBM
Certification: ISO 9001: 2000
Model Number: LBM-CTM-003
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 30-40days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25 Sets per Month

Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System

Description
Controlling System:: PLC And Converter Warranty:: 18 Months
Working Speed: 8-12m/min Shaft Size: Dia 90mm
Roller Stations: 20 Rows Main Power: 22 Kw
High Light:

cable tray manufacturing machine

,

cable tray punching machine



Full Automatic Cable Tray Roll Forming Machine Hydraulic Cut Servo Guiding Device





1. Main Technical Parameter



NO Item Para Memo
1 Suitable Material Type

Hot rolled steel coil

Galvanized steel coil


Thickness 1.6mm -2.6mm
Yield Strength 300MPa
Coil Width 216mm-816mm
2 Producing Speed About 3.5 m/min Including punching time and cutting time
3 Motor power of leveling device 5.5 KW
4 Motor power of servo feeding device 2.9 KW
5 Motor power of 200 tons punching device 18.5 KW
7 Main motor power 15KW
8 Roller change motor power 0.75KW*2+0.55KW*2
9 Hydraulic station power of Decoiler 3KW
10 Hydraulic station power of Cutter 5.5KW
11 Total power 53KW
12 Power AC415V,50Hz,3 Phase
13 Dimension (L×W×H, m) About 25×3.5×3.5



2. Advantage:



- As the same as the machine in picture, our metal stud machine can produce stud profile and truck profile,

- those profile are for partition wall, also call drywall. For this machine,

- the profile size is C&U 52*32mm, and there are also embossing at the two sides.



3. Our Services



Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 working days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 100USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.



4. Main Technical Details



1. Suitable Plate Material:



1.1 Material– thickness:0.8-1.5mm



1.2 Raw material: Galvanized steel and black steel sheets



2.  Working Speed: 12meters / min



3. Forming Steps: 20 stations



4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome



5. Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining



6. Driven system: chain drive, shafts diameter 100mm



7. Main Power with reducer: 22KW WH Chinese Famous



8. Cutting: Hydraulic Cutting Cr12mov



9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62



10. Hydraulic Station Power: 11KW Wuxi Wanshen Famous Chinese Brand



11. The whole machine is controlled by industry computer-PLC.



12 PLC--Panasonic, Japan



13 Touch Screen—Beijing Kunlun Encoder--Omron, Japan



14. Electric parts--Schneider



15. Adjust the height by the motors and the rails, controlled by the PLC





5. Packaging & Shipping



Packaging :

1. Tighten to container with steel wire rope and welded machine with container by angel iron

2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)

3. PLC contral system and motor pump are packed with water proof paper

Shipping :

1. One 20" container

2. One 40"container



6. Picture

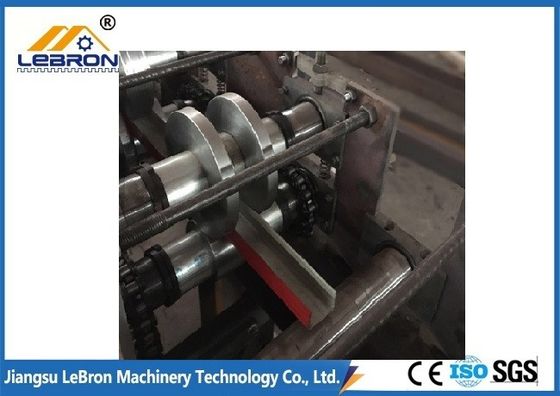

Shaft Dia 90mm Cable Tray Making Machine PLC And Converter Controlling System 0
