Product Details:
|
| Material: | No.45 Steel, Coated With Chromed Treatment | Color: | Blue |
|---|---|---|---|
| Roller Stations: | 20 Rolls | Weight:: | About 15000 Kgs |
| Diameter Of Forming Rollers Shafts:: | 90mm | Warranty:: | 18 Months |
| High Light: | corrugated roof roll forming machine,corrugated roof sheet making machine |
||

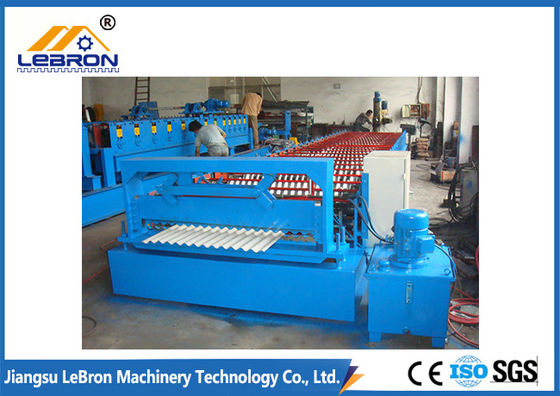

Long Time Service Corrugated Sheet Roll Forming Machine PLC Control Hydraulic Cut
1. Product Description
automatic water ripple roofing corrugated sheet roll forming machine
| No | Item | Parameter | Note | |
| 1 |
Suitable Material
|
Type | roofing corrugated sheet roll forming machine |
roll forming machine |
| Customized Profile | ||||
| Thickness | 0.3-0.7mm | |||
| Yield Strength | 235MPA | |||
| 2 |
Product Specs |
Cover width | Customized Profile | |
| Length | Any length | |||
|
3
|
Power Specs |
voltage | 380V/3PH/50HZ | Up to Practical Profile |
| Main Motor | 3-11KW | |||
| Hydraulic | 2.2-5.5KW | |||
| 4 |
Machine Specs |
Transmission | Chain and Sprocket | Gearbox and Cardan Acceptable |
| Structure | Column Block Or Wall Plate | |||
| Shafter | No.45 steel tempered | |||
| Rollers | No.45 steel chrome coated | Cr12 or other acceptable | ||
| Cutting Blade | Cr12 quenched | |||
| Press Mould | Cr12 quenched | |||
| Punch Mould | Cr12 quenched | |||
| 5 |
Working Capacity |
Forming Speed | 15-20m/min for standard solution | Higher Speed Solution Available |
| Working Speed | Up to Length-set Cutting | |||
| 6 |
Hydraulic Cantilever Decoiler (Optional) |
Type | Hydraulic | |
| Max. Capacity | 5 T/10T/15T | |||
| Suitable coil OD | 1200mm | |||
| Suitable coil ID | 508/610mm | |||
| Max Coil width | 1250mm | |||
| 7 | Forming Stand | 8-48 | Up to Practical Profile | |
| 8 | Forming Shaft Diameter | 55-120mm | Up to Practical Profile | |
| 9 | Type of Cutting | Length-set cutting after roll formed,CR12 mould steel | Pre-cutting acceptable | |
| 10 | Control System | Mitsubishi PLC and Inverter | ||
| 11 | Output Supporter | 2 Pcs Simple Supporter | Auto Stacker Optional | |
2. Technical Specification
| No | Technical Specification | |
| 1 | Manual Uncoiler | Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm |
| 2 | Feeding Table | Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
| 3 | Main Roll Forming Machine | Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped |
| 4 |
Hydraulic System Computer Control Cabinet |
Power:5.5kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
| 5 | Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
| 6 |
Output Table
|
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |
