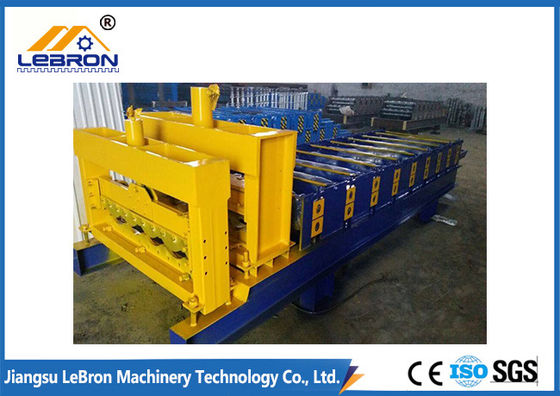

Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine

Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine
Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine
Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine

Large Image :  Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LBM
Certification: ISO 9001: 2008
Model Number: LBM-GTM-Model 02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: 30-40
Payment Terms: L/C, D/A, D/P, T/T, Western Union,, MoneyGram

Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine

Description
Suitable Material: Color Steel Sheet ,galvanized Steel Sheet, Aluminium Sheet Sheet Thickness: 0.3-0.8mm
Rollers quantity: 16 Rows Rolling material: 45# Steel Chrome Plated
Shaft Diameter: 80mm Forming Speed: 10-16m/min
High Light:

glazed roof tile roll forming machine

,

glazed tile making machine

2018 new type color steel glazed tile roll forming machine PLC control automatic made in china Blue color





1. Description of glazed tile roll forming machine



Color steel glazed tile is made by using color steel plate as the primary plate, by several processes, such as Rolling, Molding, Cutting, etc. become the final plate.



LBM factory is manufacturing high quality storage rack roll forming machines, and exported to the foreign countries such as India, Malaysia, Indonesia, Vietnam, Thailand, Russia, Syria, Saudi Arabia, Singapore, etc.





2. Main parameter of glazed tile roll forming machine



NO Main parameter of glazed tile machine
1. Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2. Width of the plate 1200/1000mm
3. Thickness of the plate 0.3-0.8mm
4. Decoiler Manual one, can load 5 tons raw material
5. Rollers for forming 16 rows
6. Diameter of the roller 80mm
7. Rolling material 45#Steel Chrome Plated
8. Main motor power 5.5kw
9. Productivity 10-16m/min
10. Cutting method Hydraulic mould cutting
11. Material of the cutting blade Cr12
12. Hydraulic cutting power 5.5kw
13. Processing precision Within 1.00mm
14. Control system Delta PLC control
16. Main structure of the machine 300 H steel
17. Weight 5T
18. Dimensions 6.5*1.5*1.3m
19. Voltage 380V 50Hz 3phases
20. Certificate CE/ISO9001
21. Custom According to customer's requirement





3. Main components of glazed tile roll forming machine



Name Quantity
Uncoiler 1 Set
Coil sheet guiding device 1 Set
Main roll forming system 1 Set
Cutting device 1 Set
Hydraulic station 1 Set
PLC control system 1 Set
Support table 1 Set





Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine 0



Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine 1



Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine 2





4. Flow chart of glazed tile roll forming machine



Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine 3





5. Application



Glazed tiles for a wide range of applications: villas, residential buildings, flat to slope, stations, public facilities, landscape rooms and other light steel roof, cast-in-place concrete structure roof, wood roof. Product color can be customized according to your needs, so as to meet the needs of customers and the style of housing to ensure the quality of the roof at the same time to do beautiful and generous.





6. Our service



1). Presale Service

We assist customers in well understanding the product information like features, functions and applications and so on.

As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.



2). After-Sale Service

a. 18 months warranty is provided.



b. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.



c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.





7. Foreign buyers



Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine 4





8. Delivery



Automatic Glazed Tile Roll Forming Machine , PLC Control Roof Tile Manufacturing Machine 5
