10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine

10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine
10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine 10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine 10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine 10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine

Large Image :  10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: LBM
Certification: ISO 9001: 2008
Model Number: LBM-CSM-019
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Sea-worthy packing with steel wires tie and fixed in the container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 Set per Month

10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine

Description
Weight: About 58000 Kgs Size: 6800*1400*1150mm (Length*Width*Height)
Roller Stations: 13-15(depends On Final Design) Roll Forming Speed: 10-15 M/min
Forming Rollers Material: No.45 Steel, Coated With Chromed Treatment Hydraulic Unit Motor Power: 5.5kw
High Light:

corrugated roof roll forming machine

,

roofing corrugated sheet roll forming machine

Speed 10-15 m/min Corrugated Roof Sheet Roll Forming Machine Hydraulic Cut



1. Description of roll forming machine:

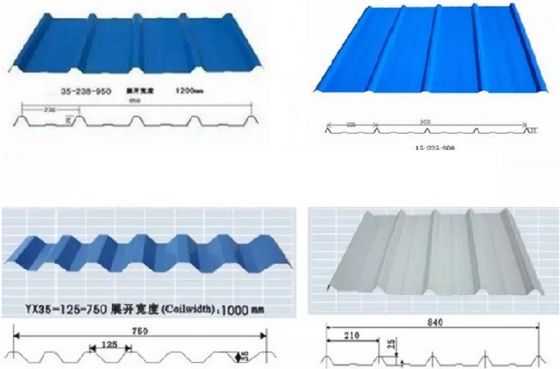

Floor deck is produced by galvanized sheet rolling to shape. The cross-sections including V-shape, U-shape, Trapezoid-shape and Wave-shape. It mainly used as the permanent shuttering. It is widely used for the multiple layers steel structure constructions, such as exhibition halls, steel structure plants, warehouses, steel structure buildings, Airports, Railway stations, Gymnasia, Concert halls, Theaters,Supermarkets, Logistics centers, High-rise steel structure building, etc.





2. Technical details roll forming machine:



1). Weight: About 58000Kgs



2). Size: About 6800*1400*1150mm (length x width x height)



3). Suitable Raw Material: Galvanized or Galvalume Coils



4). Coil Thickness: 0.8-1.2mm



5). Coil Yield Strength: 235Mpa



6). Diameter of forming rollers shafts: 85mm



7). Roll Forming Speed: 10-15/min



8). Forming rollers material: No.45 steel, coated with chromed treatment



9). Cutter material: CR12 mould steel, with quenched treatment



10). Controlling system: PLC and Converter



11). Main motor power: 2x18.5kw



12). Hydraulic unit motor power: 5.5kw



13). Electric voltage: According to customer's requirement



14). Other requirement: Custom





3.  Roll forming machine flow chart:



Uncoiler --- Feeding --- Pre-cutting --- Roll Forming --- Post Cutting --- Auto Stacker



10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine 0





4. Main components of floor deck roll forming machine:



NO. Item Unit Qty
1 Manual decoiler set 1
2 Main roll forming machine set 1
3 PLC control box set 1
4 Supporter table set 1





5. Advantages:



1). Germany COPRA software design

2). 5 engineers with more than 20 years experience

3). 30 professional technician

4). 22 sets advanced CNC production lines on site

5). Passionate Team

6). Installation engineers can reach your factory within 6 days





6. After-sell service



1). Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day



2). Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).



3). Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.



4). Lifetime services

Life time services to every customer.





6. Picture



10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine 1





10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine 2





10-15m/min Corrugated Sheet Roll Forming Machine , Corrugated Roof Roll Forming Machine 3
